You can download the 3D model by clicking on its.Information regarding the correct use of parametric data in 3D models can be found HERE.
| Oznaczenie oprawy |
Oznaczenie zespółu z łożyskiem UC |

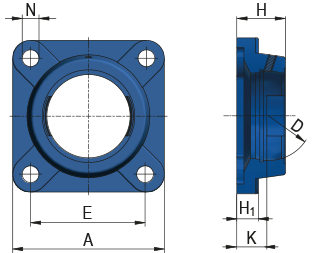

Wymiary oprawy mm |
Masa kg |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | D | E | H | H1 | N | K |  |
 |
||
| FG203 | FGC203 | 76 | 40 | 54 | 25,5 | 11 | 12 | 15 | 0,290 | |
| FG204 | FGC204 | 86 | 47 | 64 | 25,5 | 11 | 12 | 15 | 0,370 | |
| FG205 | FGC205 | 95 | 52 | 70 | 27 | 13 | 12 | 16 | 0,520 | |
| FG206 | FGC206 | 108 | 62 | 83 | 31 | 14 | 12 | 18 | 0,660 | |
| FG207 | FGC207 | 117 | 72 | 92 | 34 | 16 | 14 | 19 | 0,800 | |
| FG208 | FGC208 | 130 | 80 | 102 | 36 | 16 | 16 | 21 | 0,970 | |
| FG209 | FGC209 | 137 | 85 | 105 | 38 | 18 | 16 | 22 | 1,240 | |
| FG210 | FGC210 | 143 | 90 | 111 | 40 | 18 | 16 | 22 | 1,480 | |
| FG211 | FGC211 | 162 | 100 | 130 | 43 | 20 | 19 | 25 | 2,050 | |
| FG212 | FGC212 | 175 | 110 | 143 | 48 | 20 | 19 | 29 | 2,480 | |
| FG213 | FGC213 | 187 | 120 | 149 | 50 | 22 | 19 | 30 | 3,000 | |
| FG214 | FGC214 | 193 | 125 | 152 | 54 | 22 | 19 | 31 | 3,450 | |
| FG215 | FGC215 | 200 | 130 | 159 | 56 | 22 | 19 | 34 | 3,730 | |
| FG216 | FGC216 | 208 | 140 | 165 | 58 | 22 | 23 | 34 | 4,210 | |
| FG217 | FGC217 | 220 | 150 | 175 | 63 | 24 | 23 | 36 | 5,300 | |
